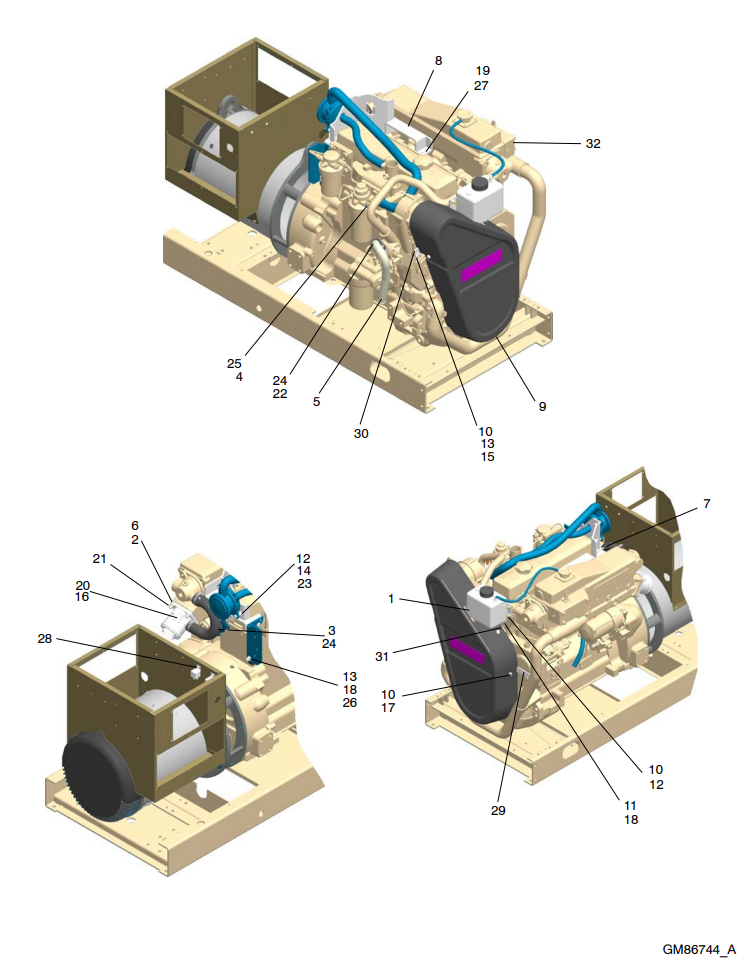

Engine, continuedVariation 1, 2, 3, 4, 15, 16, 17, 18ItemPartNumber Description Quantity1 256971 Bottle, Overflow 12 352029 Gasket 13 GM25430 Hose, Seawater (1.25” ID) 14 GM42525 Adapter Bushing 15 GM
Engine, continued Variation 1, 2, 3, 4, 15, 16, 17, 18 Item Part Number Description Quantity 1 256971 Bottle, Overflow 1 2 352029 Gasket 1 3 GM25430 Hose, Seawater (1.25” ID) 1 4 GM42525 Adapter Bushing 1 5 GM47453 Tube, Water Inlet 1 6 GM47702 Elbow, Wet Exhaust 1 7 GM48028 Line, Fuel 1 8 GM63139 Eye, Lifting 1 9 GM86086 Guard, Belt 1 10 M125A-08-80 Washer, Plain, 8.4 ID X 16.0 OD 7 11 M125A-10-80 Washer, Plain, 10.5 ID X 20.0 OD 3 12 M6923-08-80 Nut, Hex 8mm 7 13 M6923-10-80 Nut, Hex 10mm 6 14 M931-08045-60 Screw, Hex Cap 3 15 M931-10040-60 Screw, Hex Cap 1 16 M933-05020-60 Screw, Hex Cap 2 17 M933-08025-60 Screw, Hex Cap 3 18 M933-10025-60 Screw, Hex Cap,Fully Thrd M10 X 25mm 3 19 M933-10025-82 Screw, Hex Cap 3 20 M934-05-50 Nut, Hex 5mm 2 21 X-272-2 Hose, Radiator, Straight, 1.25 In. ID 1 22 X-400-52 Spacer, .359 ID X .547 OD X .75 In. 3 23 X-426-19 Clamp, Hose, 1.00/2.00 In. 4 24 X-447-23 Elbow, Male Tube (90 Deg) + Vibra Seal 1 25 X-672-31 Clamp, Insulated, .75 In. 1 26 X-75-4 Plug, Pipe ( 1/8” Nptf) 1 27 X-801-3 Washer, Hardened,.406 ID X .812 In. OD 3 28 See Chart Relay, 12 VDC 2 29 See Chart Bracket, Belt Guard 1 30 See Chart Bracket, Belt Guard 1 31 See Chart Bracket, Water Bottle 1 32 See Chart Engine Assembly 1
